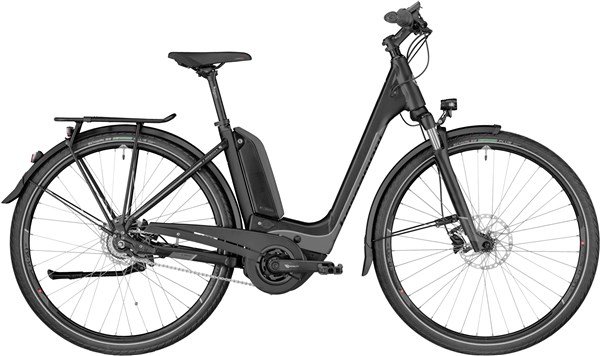

Bergamont - E-Horizon N7 FH 400 Wave Electric Hybrid

Bergamont E-Horizon N7 FH 400 Wave 2018 - Electric Hybrid Bike | City-cykler
Mærke
bergamont
Til børn
Nej
Cykeltype
City-cykler
El-cykler
Ja
Elektronisk geargruppe
Nej
Geargruppe
nexus

Product Description

Integration for all! The UNIVERSAL CHASSIS CONCEPT permits the tried-and-tested Bosch PowerPack technology to be integrated to its full potential – without making any compromises. The frame cover, which has been developed in-house, follows the clear-cut lines of the frame design, protects the battery from moisture and dust and allows the PowerPack to be installed and removed with ease. Alongside the Power Tube versions, the powerful Bosch engines deliver pure riding enjoyment and safe handling when combined with the optimised geometry and the disc brake system which is installed as standard.
Universal Chassis Concept We always made an extra effort when creating frame geometries and features to achieve superior riding capabilities. Using this knowledge we created a universal e-bike frame platform that perfectly integrates modern batteries and drive units.
Clever Enginge Cover We always aim to make what is good even better. This led us to design our very own, unique motor housing and bash guard for our e-bikes.
Finite Element Method To simulate and analyze individual frame components even before the first samples are fabricated, the Bergamont engineers use the latest FEM computer software.
E.Drive System:
  • Motor : Bosch Drive Unit Active Line, for freewheel, 250W, 36V, max. 25 km/h
  • Display : Bosch Intuvia
  • Battery : Bosch 36 V Li Ion, 400 Wh, frame-type
  • Range : 400Wh: 45-175km, depending on assistance mode and riding conditions
  • Assistance Modes : Eco (+40%), Tour (+100%), Sport (+150%), Turbo (+225%), Walk Assist (-5km/h)

Specification

Frame: 28" E-bike, AL-6061 ultra lite butted tubing, T4/T6 heat treated, hydro fluid forming, double butted, 3D-dropout, tapered headtube, internal cable routing, Internal Battery, E-bike-comfort geometry Fork: Suntour NEX HLO-P 28", 1 1/8", 63mm, coil, hydraulic lockout Headset: FSA NO.57SC-1, A-Headset, semi integrated, tapered Stem: BGM Pro, 17°-25° Bars: BGM Pro, riser bar Front Brake: Shimano BR-M315, hydraulic disc brake, SM-RT10 rotor: 180mm Rear Brake: Shimano BR-M315, hydraulic disc brake, SM-RT10 rotor: 160mm Brake Lever: Shimano BL-M315, hydraulic disc brake Shifters: Shimano Nexus, SL-C3000 Speed: 7 Rims: Mach-1 ER-20, disc, eyelets Front Hub: Shimano HB-M3050, center lock, disc, quick release Rear Hub: Shimano Nexus, SG-C3001-7, freehub Spokes: Sapim Leader, stainless, silver Front Tyre: Schwalbe Energizer Plus, reflective stripe, 47-622 Rear Tyre: Schwalbe Energizer Plus, reflective stripe, 47-622 Seat Post: BGM Pro, 2-bolt design Chainset: BGM Pro, 38t Bottom Bracket: Bosch, Isis Chain: KMC Z610HXRB, antirust, heavy duty Cassette: Shimano, 20t Pedals: Wellgo C128 Weight: 24.80kg

Occasionally without notice, manufacturers sometimes change product specifications.

Webshop
Priser fra : 17.536 Til 19.247 DKK
17.536 DKK
19.247 DKK
