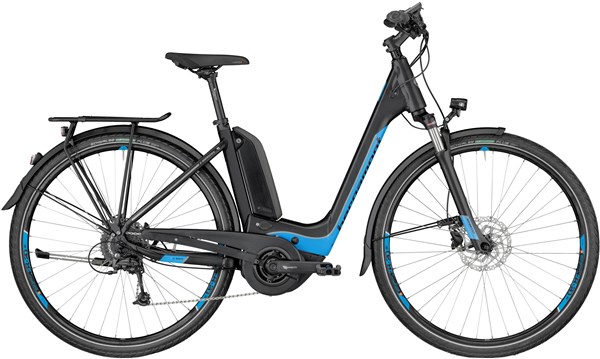

Bergamont - E-Horizon 7.0 400 Wave Electric Hybrid

Bergamont E-Horizon 7.0 400 Wave 2018 - Electric Hybrid Bike | City-cykler
Til børn
Elektronisk geargruppe

Product Description

Integration for all! The UNIVERSAL CHASSIS CONCEPT permits the tried-and-tested Bosch PowerPack technology to be integrated to its full potential – without making any compromises. The frame cover, which has been developed in-house, follows the clear-cut lines of the frame design, protects the battery from moisture and dust and allows the PowerPack to be installed and removed with ease. Alongside the Power Tube versions, the powerful Bosch engines deliver pure riding enjoyment and safe handling when combined with the optimised geometry and the disc brake system which is installed as standard.
Universal Chassis Concept We always made an extra effort when creating frame geometries and features to achieve superior riding capabilities. Using this knowledge we created a universal e-bike frame platform that perfectly integrates modern batteries and drive units.
Clever Enginge Cover We always aim to make what is good even better. This led us to design our very own, unique motor housing and bash guard for our e-bikes.
Finite Element Method To simulate and analyze individual frame components even before the first samples are fabricated, the Bergamont engineers use the latest FEM computer software.
E.Drive System:
  • Motor : Bosch Drive Unit Performance Line, 250W, 36V, max. 25 km/h
  • Display : Bosch Intuvia
  • Battery : Bosch 36 V Li Ion, 400 Wh, frame-type
  • Range : 400Wh: 45-175km, depending on assistance mode and riding conditions
  • Assistance Modes: Eco (+40%), Tour (+100%), Sport (+150%), Turbo (+250%), Walk Assist (-5km/h)


Frame: 28" E-bike, AL-6061 ultra lite butted tubing, T4/T6 heat treated, hydro fluid forming, double butted, 3D-dropout, tapered headtube, internal cable routing, Internal Battery, E-bike-comfort geometry Fork: Suntour NCX D-LO, 1 1/8", 63mm Headset: FSA NO.57SC-1, A-Headset, semi integrated, tapered Stem: BGM Pro, 17°-25° Bars: BGM Pro, riser bar Front Brake: Shimano BR-M315, hydraulic disc brake, SM-RT10 rotor: 180mm Rear Brake: Shimano BR-M315, hydraulic disc brake, SM-RT10 rotor: 160mm Brake Lever: Shimano BL-M315, hydraulic disc brake Rear Mech: Shimano Deore, RD-M591 Shifters: Shimano Deore, SL-M590, rapidfire plus Speed: 9 Rims: Mach-1 ER-20, disc, eyelets Front Hub: Shimano HB-M3050, center lock, disc, quick release Rear Hub: Shimano FH-M3050, center lock, disc, quick release Spokes: Sapim Leader, stainless, silver Front Tyre: Schwalbe Energizer Plus, reflective stripe, 47-622 Rear Tyre: Schwalbe Energizer Plus, reflective stripe, 47-622 Seat Post: BGM Pro, 2-bolt design Chainset: BGM Pro, 38t Bottom Bracket: Bosch, Isis Chain: KMC X9E Cassette: Shimano CS-HG200-9, 11-36t Pedals: Wellgo C128 Weight: 23.60kg

Occasionally without notice, manufacturers sometimes change product specifications.

19.302 DKK
